Product details
Product overview：
Aviation aluminum has the advantages of light weight, corrosion resistance and high strength, especially at low temperature. Our company has a long-term cooperative relationship with Chinalco to provide us with high quality aviation aluminum.

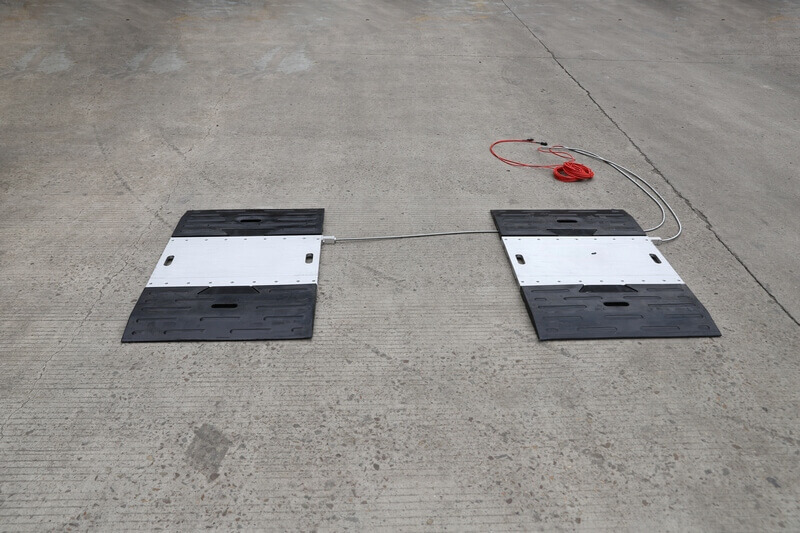

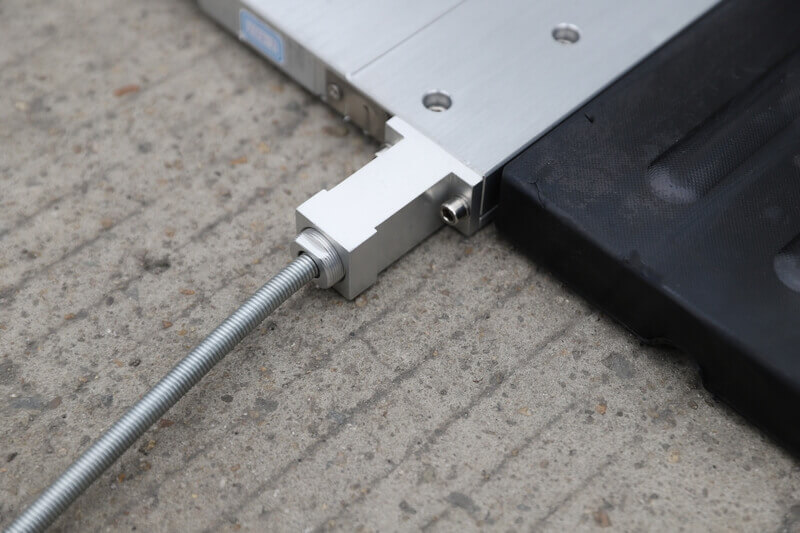

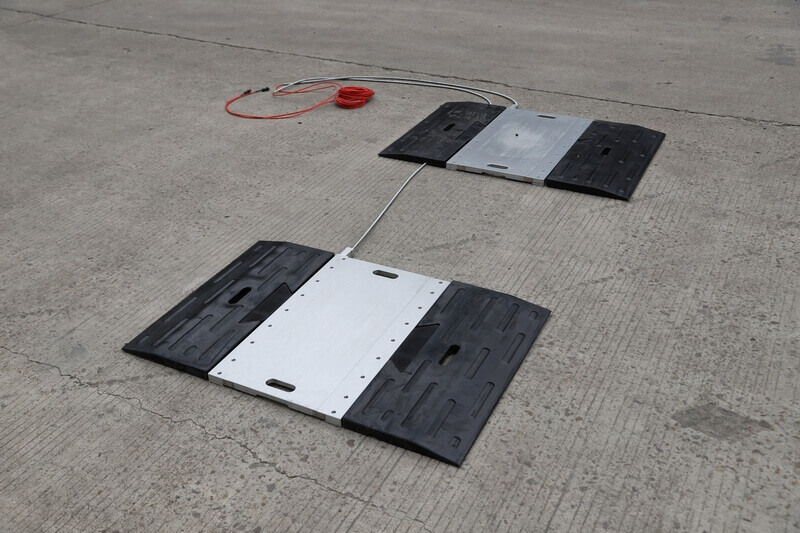

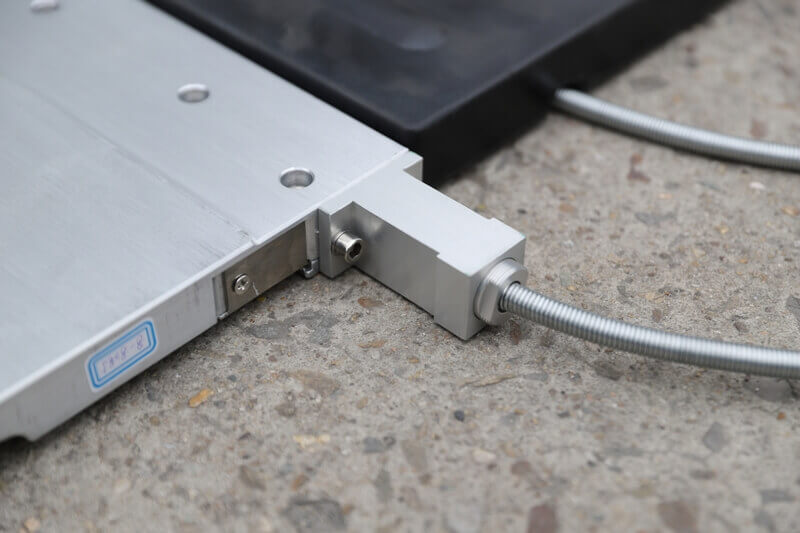

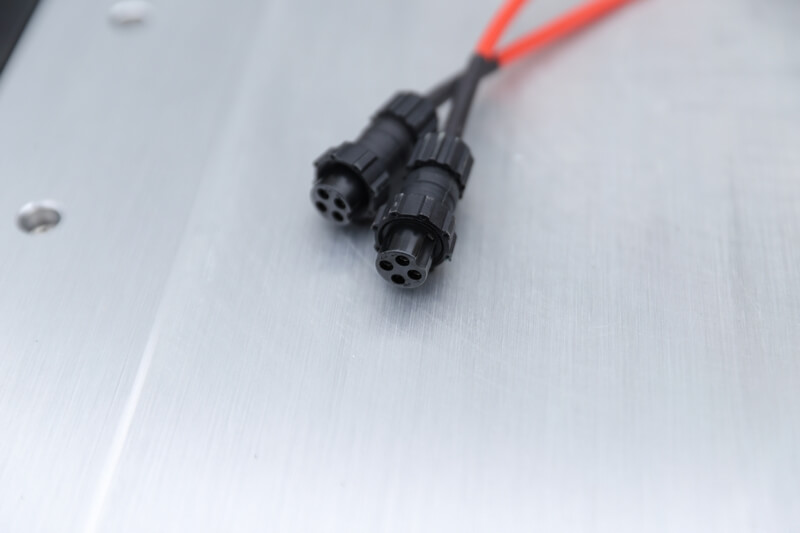

This series of products adopts the idea of integral structure carefully designed, the use of Germany Noble IMC company aluminum special tool numerical control processing, surface drawing treatment using YJHCL technology treatment, beautiful, oxidation resistance, corrosion resistance, high strength; Using stress transmission element from American Doweston company, data response block, high precision, and impact resistance up to one million times; Line connection using flexible technology, reliable, pressure resistance; The overall use of BOSTIC polyamine ester adhesive multiple protection, aging resistance, high waterproof grade; The product has been tested at high and low temperature, and the production process is detected by high-precision force measuring machine. The product is equipped with natural rubber guide slope, with the advantages of pressure resistance, impact resistance, oxidation resistance, no deformation, etc. There is no need to do a special foundation, only the smooth and hardened road surface can be placed at will. The dynamic weighing can be equipped with the transition connecting plate of equal distance length of the coupling wheels to lead the slope, which significantly improves the accuracy of dynamic weighing.
Application field：
1. Enforcement and supervision of overloading by traffic police and road administration; Overflow control inspection at high-speed entrance.
2. For wheeled vehicles (including aircraft) wheel weight, axle weight, offset load, total weight and other high accuracy requirements;
3. Widely used in industrial and mining enterprises, construction sites, docks, warehousing, logistics and other enterprises on the dynamic/static weighing use of vehicles;
4. Multiple platen combination, can replace part of the need to install a fixed truck scale occasions, and can be quickly moved to restructure, cost-effective.
5. In local occasions, it can be used as a weighing module.
series | name | size（mm） | range（t） | weight（kg） |
500 series | Wireless bedplate | 500*430*35 | ≤ 10t | 17 |
Cable bedplate | 500*400*29 | 15 | ||
Rubber guide slope | 500*300*29 | 5 | ||
700 series | Wireless bedplate | 700*430*35 | ≤20t | 24 |
Cable bedplate | 700*430*29 | ≤15t | 22 | |
Rubber guide slope | 700*340*30 | 9 | ||
Transition connecting plate of coupling shaft | 700*400*30 | 12 | ||
800 series | Wireless bedplate | 800*430*35 | ≤35t | 31 |
Cable bedplate | ||||
Rubber guide slope | 800*350*35 | 12 |
Product Performance Introduction：
1. Weighing range: single sheet weighing: 5 t ~ 35 t, axle load: ≤70 t;
2. Accuracy grade: static weighing: +/ -0.2% F.S; Dynamic weighing: +/- 2%-5%F.S.
3 overload capacity: safety overload: 130%; Limit overload: 160%.
4. Temperature range: -30/80 degree C
5. Waterproof rating: IP66
6. Signal processing: wireless transmission/wired transmission is optional; Dynamic/static weighing can be switched, supporting the combination of multiple boards.
Accessories to choose：
1. Transition connecting plate of coupling car (it can improve the ride comfort of the vehicle after use, especially the dynamic weighing accuracy can be improved to within 1-2%)
2. Large screen, camera, printer, battery, car charger, signal line, customized software, etc.
3. According to customer needs: LOGO, appearance, packaging and other OEM customization.
4. Instrument: according to customer needs, can be easily connected with their own system, or for development.
Company strength
Products are: portable axle load meter, explosion-proof instrument, liquefied petroleum gas filling scale, wireless electronic hanging scale, the company construction area of 15000 square meters, employees more than 200 people.
Rich engineering experience and perfect service ability, with an annual output of 3000 large scale, 8800 small scale, commercial scale 27000 units of capacity.
It has unique advantages in the structure, precision, stability, surface treatment, anti-corrosion, waterproof, explosion-proof and application in special industries.
The company has a strong ability to quickly develop and respond, timely provide targeted design products, to fully meet customer needs.
In strict accordance with the national standards to organize the development and production, in the enterprise to establish, implement and maintain the ISO9001:2000 quality management system.
The production of weighing products and accessories are extremely rich, and the specifications are complete, the delivery is fast, has a high cost performance, and has obtained a number of national patents.
Free technical consultation, professional and technical personnel 7*24 hours online consultation, free on-site survey, senior engineers customized solutions within 36 hours.
In the domestic and foreign markets to establish a good brand image, Midea, Mengniu, Sany Heavy Industry, China West Power, China Railway and other thousands of customers have chosen us.
